Screen 2025-4

Screen “2025-4” #

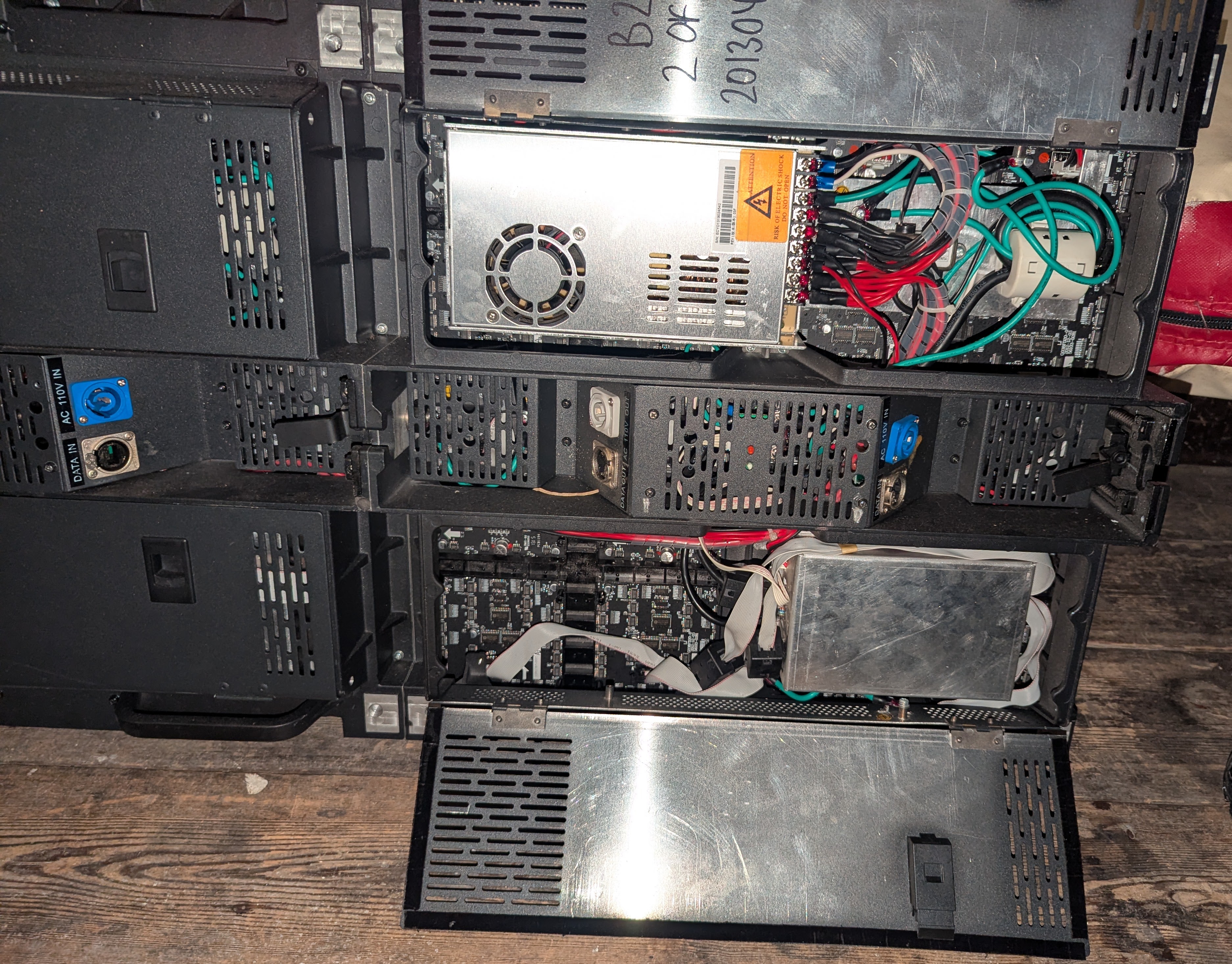

  • 8 panels, twinned in groups of 2
  • PowerCon, labelled 110V! PSU has no markings so it’s unclear if it supports 230V, but it probably does?
  • Unidentified receiver card, but I’d put money on it being DBStar or Linsn

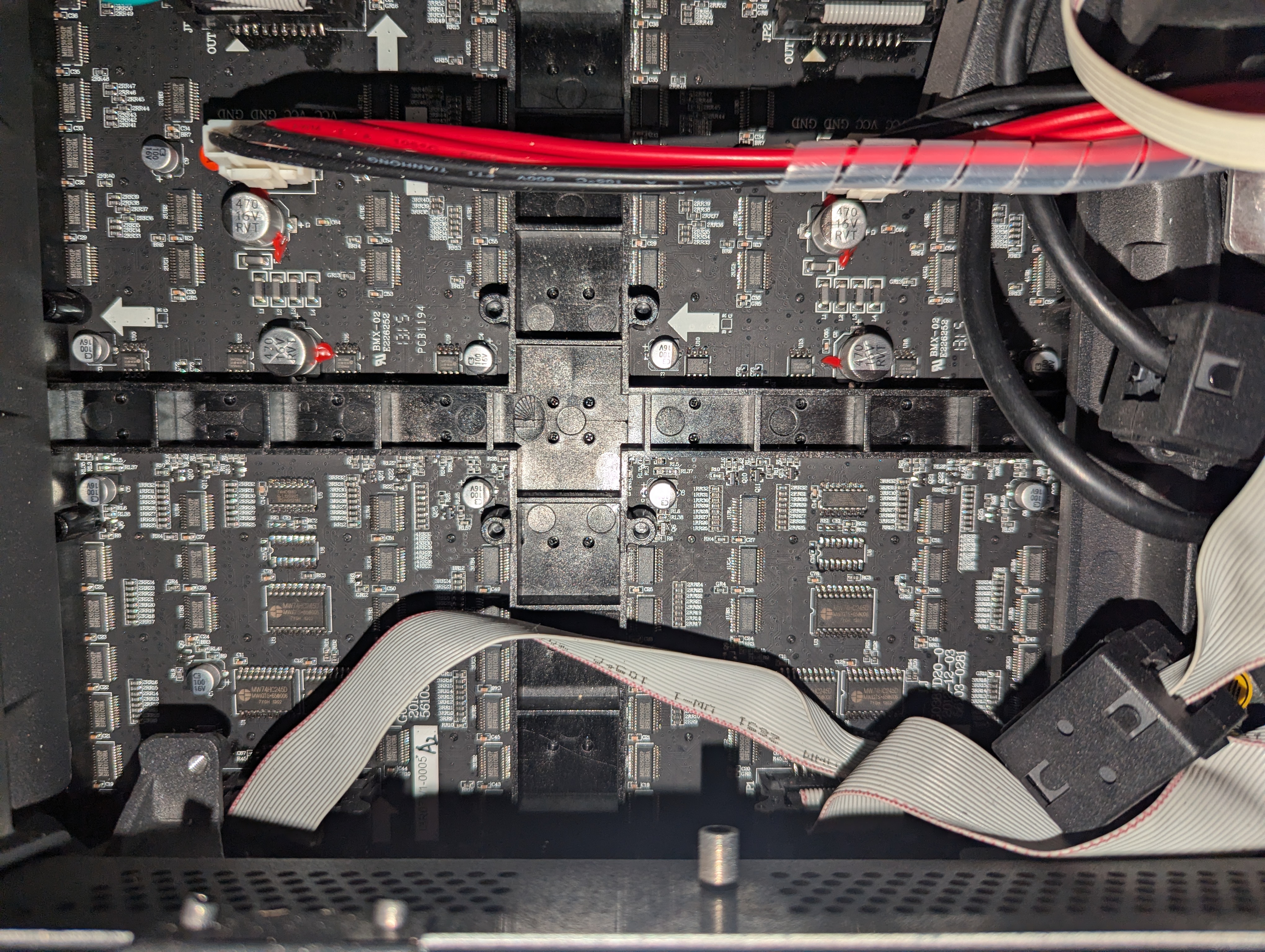

Tile PCBs are visible and driver ICs are MBI5050GP (datasheet). This seems quite similar to the MBI5153 in the DMG1083.

This one is likely best harvested for tiles.
